PD3129 - Direction of rotation indicator up to 600V
Available stock:
10
Product details
Product number:
PD3129
EAN:
4536036004621
Width:
300 mm
Height:
750 mm
Weight:
0.38 kg

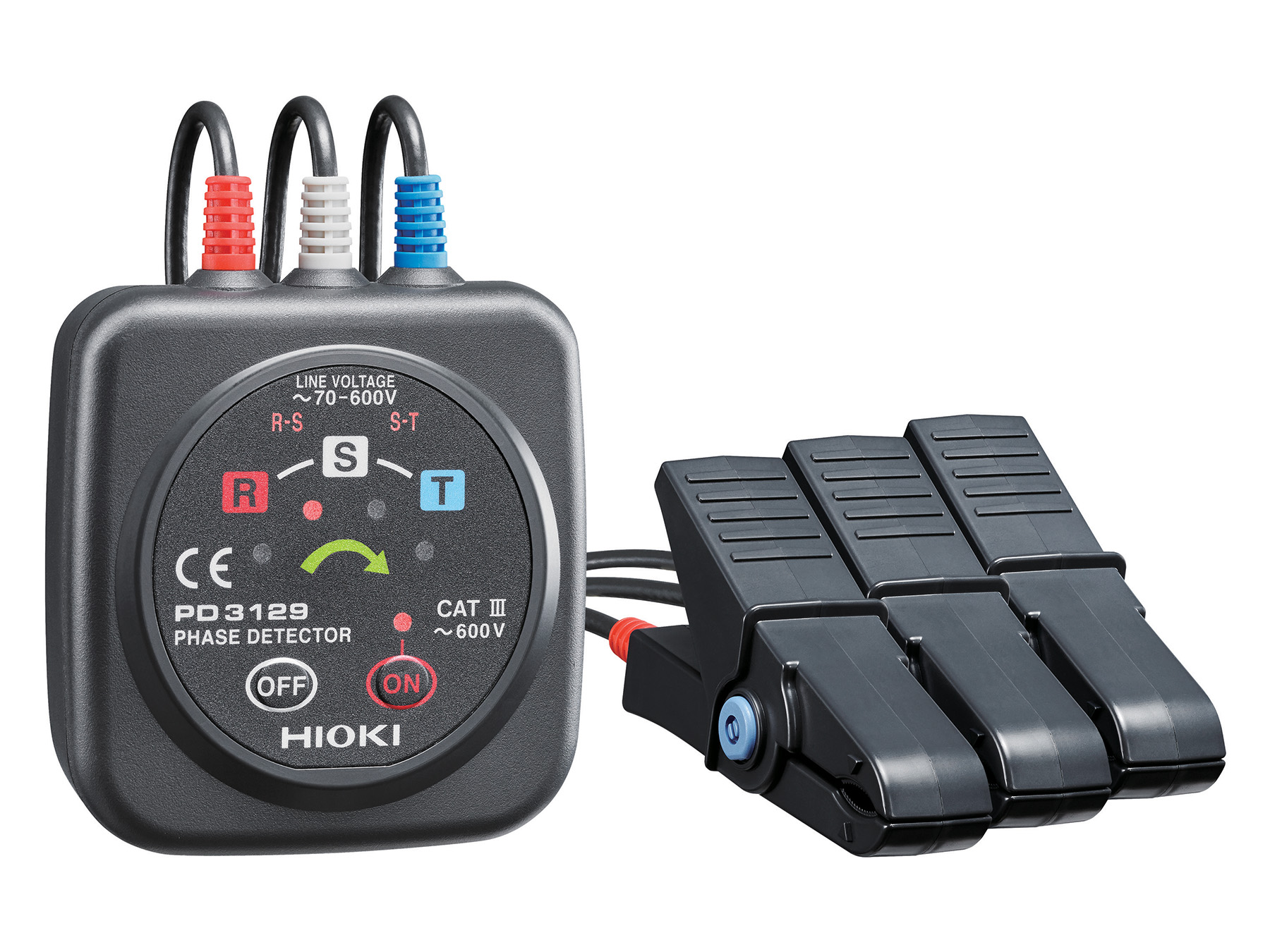

Product information "PD3129 - Direction of rotation indicator up to 600V"
The PD3129 is a phase detector designed for safe, non-contact phase detection on thin conductors. It handles voltages up to 600 V AC and features clear LED indications for positive and negative phase detection. This compact and lightweight device offers reliable live line checks, making it ideal for a variety of environments.
Technical Details:
- Voltage Range: 70 to 600 V AC (continuous sine wave)
- Frequency Range: 45 Hz to 66 Hz
- Conductor Size: 2.4 mm (0.09 in) to 17 mm (0.67 in) insulated wiring
- Phase Indication: o Positive phase: LEDs light in clockwise order, buzzer sounds intermittently, green arrow lights up o Negative phase: LEDs light in counterclockwise order, buzzer sounds continuously
- Functions: Live line check, battery check function
- Power Supply: R6P manganese battery × 2
- Operating Time: 5 hours
- Dimensions: 70 × 75 × 30 mm (2.76 × 2.95 × 1.18 in)
- Cable Length: 70 cm (2.30 ft)
- Weight: 200 g (7.1 oz)
- Safety Category: CAT IV 600 V
- PD3129
- Carrying case
- Strap
- Spiral tube
- Instruction manual
- 2x R6P (AA-size) manganese battery
-
Product Catalog with data sheet, Field Measuring Instruments (English)40,026 KB pdf
-
Product catalog, phase detector voltage detector series (English)3,456 KB pdf
-
Instruction Manual, Phase Detector PD3129, PD3129-10 (German, English)1,400 KB pdf
-
Instruction Manual, Phase Detector PD3129, PD3129-10 (French, English)1,393 KB pdf
