HIOKI Power Quality Analyzers

Reliable Power Quality Measurement for Monitoring and Compliance

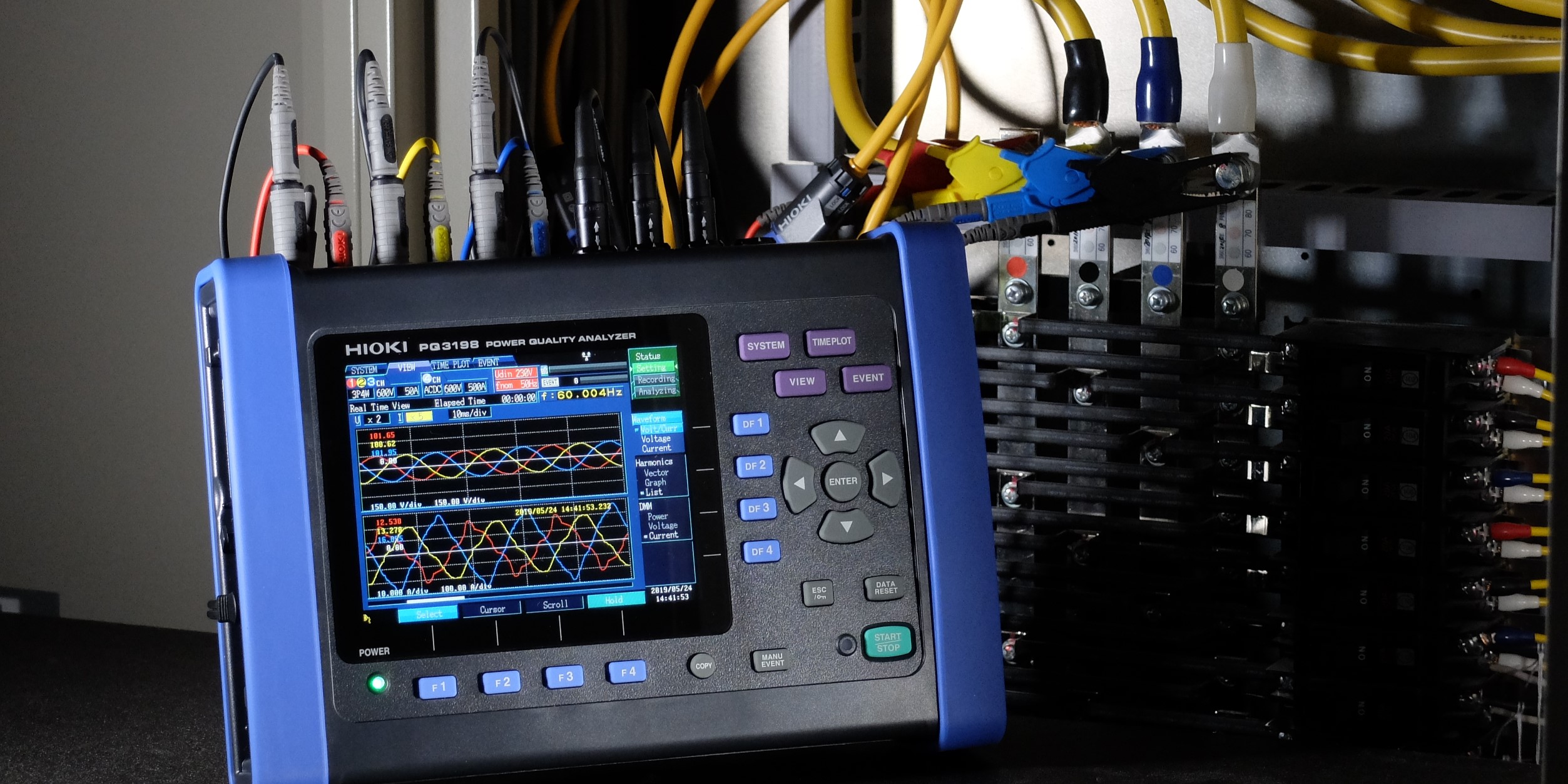

HIOKI’s Power Quality Analyzers provide precise measurements for monitoring, troubleshooting, and compliance testing. The PQ3198-94 records voltage dips, harmonics, and transients to IEC 61000-4-30 Ed.3 Class A – ideal for energy audits and long-term power quality analysis.

The PQ3100 enables fast on-site setup for maintenance and field troubleshooting. Both models reliably capture voltage, current, power, and frequency on all conductors using a wide range of HIOKI current sensors and enable easy, structured reporting with the free software PQ One.

PQ3100-94

PQ3100-94 - Power quality measuring device with 4 flexible current transformers

The PQ3100-94 Kit builds on the PQ3100, combining its powerful capabilities with essential accessories for high-current measurements. This complete solution includes 4 CT7045 Flexible Current Sensors, enabling precise measurements up to 6000 A. The PQ3100’s intuitive setup, extensive waveform recording, and compliance with IEC61000-4-30 Class S make it perfect for professionals who demand accuracy and reliability in power quality analysis. Whether for EV charging stations, renewable energy systems, or industrial equipment, the PQ3100-94 Kit ensures you’re equipped for every challenge in high-power electrical environments. Technical Details:Measurement Channels: 4 voltage channels, 4 current channels Voltage Measurement Range: 1 V to 1000 V AC/DC, ±6000 V peak Current Measurement Range: Up to 6000 A (with appropriate current sensors) Frequency Range: DC, 0.1 Hz to 700 kHz Basic Accuracy: Voltage ±0.2%, Current ±0.2% (with sensor) Event Detection: Transients, voltage fluctuations, harmonics, inrush currents Compliance: IEC61000-4-30 Class S Waveform Recording: Up to 11 seconds for detailed event analysis Display: 6.5-inch TFT color LCD Data Storage: Internal memory and SD card support Power Supply: AC Adapter Z1002, Battery Pack Z1003 (up to 3 hours operation) Dimensions: 264 mm (W) × 150 mm (H) × 68 mm (D) Weight: 2.6 kg

€4,648.00*

PQ3198-94

PQ3198-94 - Power quality analyzer kit with 4 flexible current clamps

The Hioki PQ3198-94 Kit is a complete solution for monitoring and analyzing power quality. Equipped with all essential accessories, it enables professionals to perform high current measurements up to 6000 A in demanding electrical systems.

€7,708.00*

Details

Power Quality Analyzers: Detect issues, pinpoint causes

Enhance your power analysis, grid diagnostics, and energy monitoring with HIOKI. From the PQ3100 for network analysis and energy audits to the advanced PQ3198 for high-current testing up to 6000 A and detailed event analysis – screen the key parameters for your application in the table below and select your tool. Explore our range of compatible Hioki current sensors here.

Model	PQ3100 Power Quality Analyzer	PQ3198 Power Quality Analyzer
Supported wiring	PQ3100 1P2W, 1P3W, 3P3W, 3P4W (50/60 Hz only), DC, 1 power line	PQ3198 1P2W, 1P3W, 3P3W, 3P4W (50/60/400 Hz only), DC, 2 power lines
Harmonics measurement	PQ3100 Up to 50^th order	PQ3198 Up to 50^th order (Higher frequency from 2 kHz to 80 kHz)
IEC 61000-4-30 Ed,3 Class*¹	PQ3100 Class S	PQ3198 Class A
Power accuracy²	PQ3100 0,3 %²	PQ3198 0,3 %²

*1According to IEC 61000-4-30 Ed.3, Class A offers higher accuracy and reliability in power quality measurements compared to Class S. It requires strict measurement procedures, precise time synchronisation and a wider range of parameters, making it suitable for international comparisons and detailed analyses. In contrast, Class S is designed for basic monitoring with limited accuracy and fewer functions.
