LR5051 - Data Logger for Current Clamps
€270.40*
% €338.00* (20% saved)
Content:
1 Each
In stock in Germany
Available stock:
2
Product details
Product number:
LR5051
EAN:
4536036013296
Length:
28 mm
Width:
79 mm
Height:
57 mm
Weight:
0.165 kg
Product information LR5051 - Data Logger for Current Clamps

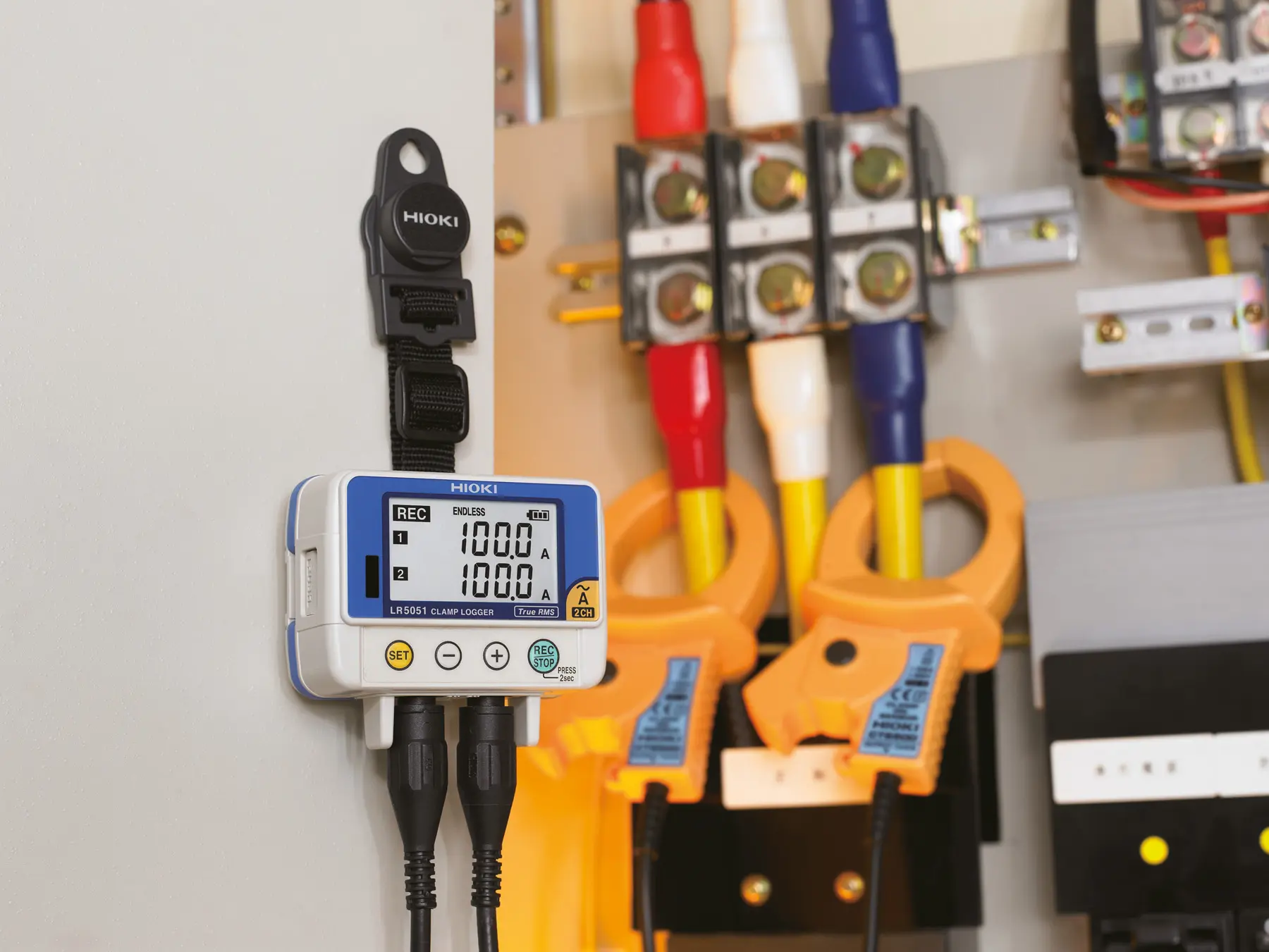

The LR5051 pocket-sized logger records load and leakage currents across two channels, featuring high accuracy and compact design for easy deployment.
Technical Details:
- Current range: 500 mA to 1000 A AC rms
- Accuracy: +/- 2%rdg, +/- 0.13%f.s.
- Memory: 60,000 data points, 2ch memory
- Recording intervals: Starting from 1s
Related products
CT6500
CT6500 - Current Clamp for LR5051 and LR8513
The Hioki CT6500 is a current clamp for non-contact measurement of AC currents up to 500 A on live conductors, without interrupting the circuit.
Connection is provided via a BNC output and is intended for use with the compact Hioki data loggers LR5051 and LR8513.
The current clamp is designed for measurements in CAT III environments up to 600 V rms and complies with IEC/EN 61010. Key Specifications AC current measurement up to 500 AFrequency range: 40 Hz – 1 kHzAccuracy: ±1.5% rdg.±0.03%f.s.at 50/60 Hz Measurement category: CAT III (600 V rms) Maximum conductor diameter: Ø 46 mmCable length: 3 m
