L9788-11 - Remote Switch Lead Set for HIOKI Insulation Testers

Test lead set, red L9788-10 lead with integrated remote switch and LED illumination, black 1.2 m test lead with 4 mm connectors, black probe tip, black alligator clip
L9788-11 - Remote Switch Lead Set for HIOKI Insulation Testers
HIOKI L9788-11 test lead trigger button earth lead alligator led indicator
HIOKI L9788-11 test lead trigger button earth lead alligator 1,2m red
L9788-11 - Remote Switch Lead Set for HIOKI Insulation Testers
HIOKI L9788-11 test lead trigger button earth lead alligator led indicator
HIOKI L9788-11 test lead trigger button earth lead alligator 1,2m red

€78.00*

Content: 1 Each

*Prices excl. VAT plus shipping costs

In stock in Germany

€78.00*

L9788-11 - Remote Switch Lead Set for HIOKI Insulation Testers
Available stock: 10
Product number: L9788-11
EAN: 4536036001149
Weight: 0.14 kg

Product information L9788-11 - Remote Switch Lead Set for HIOKI Insulation Testers

The L9788-11 is a test lead set for HIOKI insulation testers. It includes the red L9788-10 lead with integrated remote switch and LED illumination as well as a black 1.2 m test lead with 4 mm connectors.

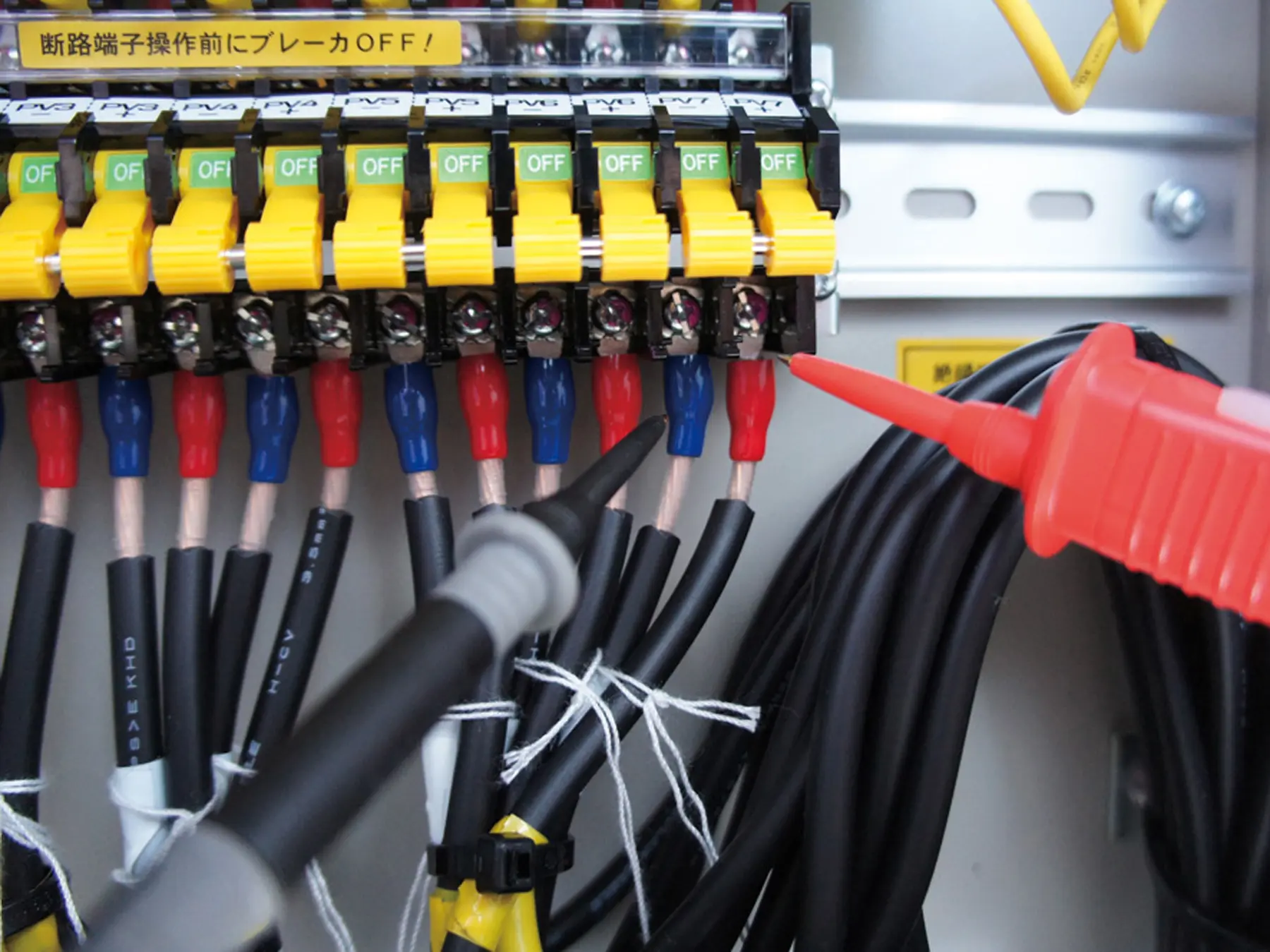

The L9788-10 allows measurements to be started directly from the probe. This allows both hands to remain on the installation for secure positioning of the test leads at the test object. The LED illumination is switched on and off together with the insulation tester’s display backlight and supports work in poorly lit distribution boards and technical rooms.

The black test lead features one straight and one right-angle 4 mm connector. It is supplied with a detachable black probe tip and a detachable black alligator clip for flexible connection to different test objects.

With the tip covers attached, the measurement category is CAT III 600 V. Without the tip covers, it is CAT II 600 V.

The L9788-11 is compatible with HIOKI digital insulation testers IR4053, IR4056, IR4057-50, IR4057-90 and IR4059, as well as with analog insulation testers 3490, IR4016, IR4017 and IR4018 and the FT4310 Bypass Diode Tester.
  • L9788-11 Remote Switch Lead Set
