FT4310 - Solar Panel Bypass Dioden Tester
This product is no longer available.
Looking for a similar solution?
Explore more HIOKI test and measuring instruments in this category:Product information FT4310 - Solar Panel Bypass Dioden Tester

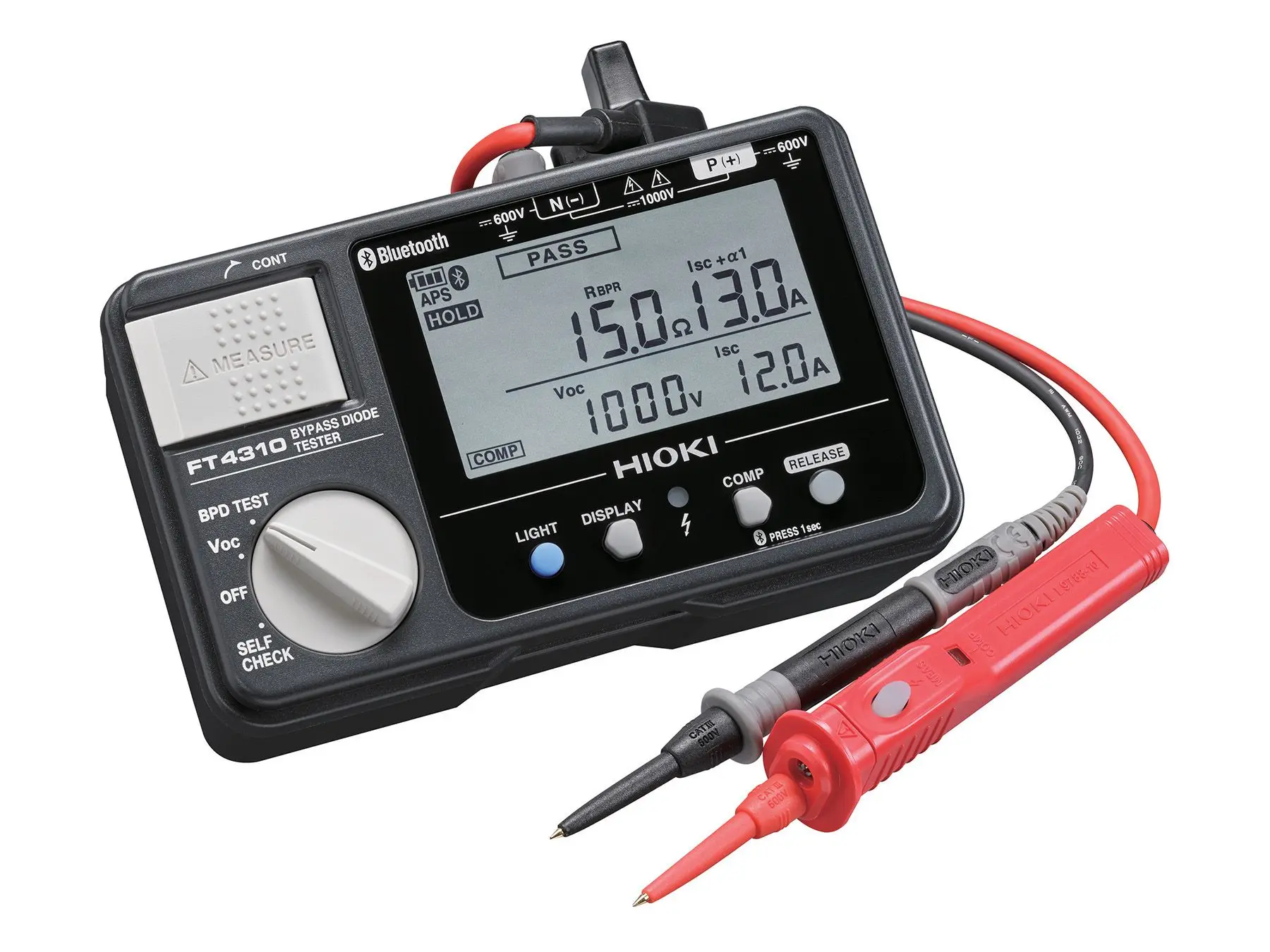

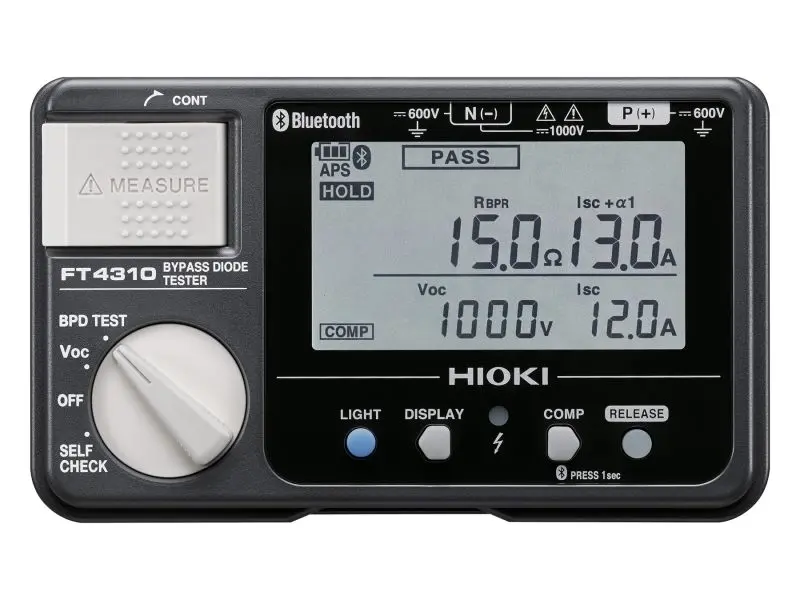

The Hioki FT4310 Bypass Diode Tester is designed for efficient testing of bypass diodes in solar panels without the need to cover them, even in broad daylight. The FT4310 can quickly identify open and short-circuit faults in bypass diodes, helping to prevent potential fires and improve overall solar panel efficiency.
With Bluetooth® wireless technology, measured data is automatically transferred to a smartphone or tablet for easy analysis using the GENNECT Cross app. The compact design allows for quick and accurate testing, improving maintenance efficiency. It is equipped with an easy-to-read display and is built to withstand tough working environments.
Technical Information:
- Measurement items: Open-circuit voltage, Short-circuit current, Bypass route resistance
- Measurement range: Open-circuit voltage: 0 to 1000 V DC; Short-circuit current: 0 to 15 A; Bypass route resistance: 0 to 15 Ω
- Bluetooth® wireless technology: Supported
- Operating temperature: −10°C to 65°C
- Power supply: 6 AA alkaline batteries
- Continuous operating time: Approx. 45 hours (Bluetooth® OFF)
- Safety category: CAT III 600 V
Related products
L9788-11
L9788-11 - Test lead with trigger button for insulation tester
The L9788-11 combines the Test Lead with a Remote Switch. It has a lighting LED lamp and comparator indicator which is active for main units with comparator function. The tip cover is detachable to measure on breakers or similar devices. The L9788-11 is the L9788-10 plus additional Earth lead and alligator clip. Technical information:Cable Length: 1.2 m Color: Red Tip Diameter: Front part 1.8 mm, shaft basis 3.2 mm Tip length: 35 mm (smaller tip part: 13 mm) Voltage safety categories: With tip cover: Cat III 600V, w/o cover Cat II 600V Imax: 2 A Compatible Hioki Products: FT4310, IR4016-20, IR4058, IR4056, IR4053, IR4057-50, IR4057-90, IR4059 Others: additional Earth Lead and Alligator clip, colour black
L9788-90
L9788-90 - Replacement measuring tip for L9788, L9788-10
L9788-90 is the spare part tip of the test lead L9788-10. Technical information: Tip length 35 mm Tip diameter: 3.2 mm Color: Red
L9788-92
L9788-92 - Slip-on tip for L9788-10
The L9788-92 is a detachable accessory tip for the L9788-10 test lead for checking breaker terminals.Technical information:Tip length: 121 mm Tip diameter: 2.6 mm Voltage safety categoriy: Cat III 600V Imax: 2 A Color: Red Compatible to: L9788-10, L9788-11
C0206
HIOKI C0206 - Carrying Case

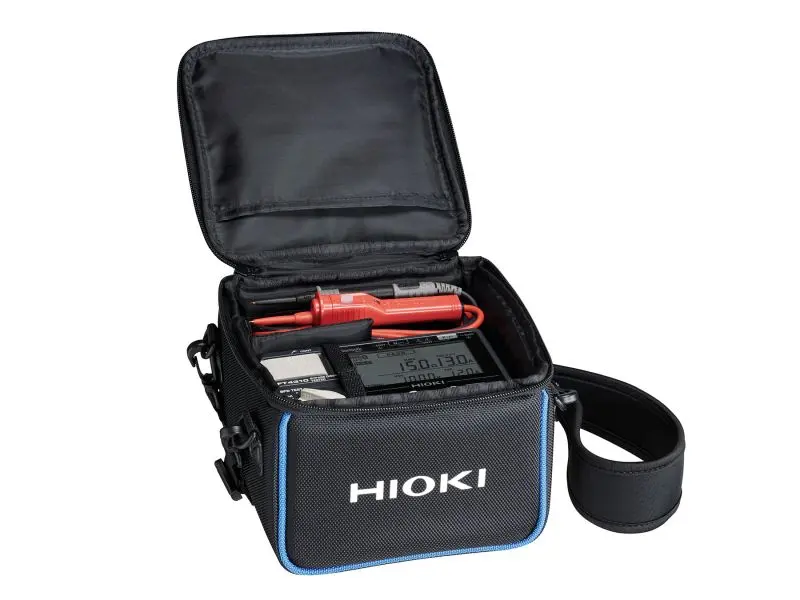

HIOKI C0206 carrying case with zipper and shoulder strap, designed for secure transport of the FT4310 bypass diode tester and accessories. Order now from HIOKI Europe.
