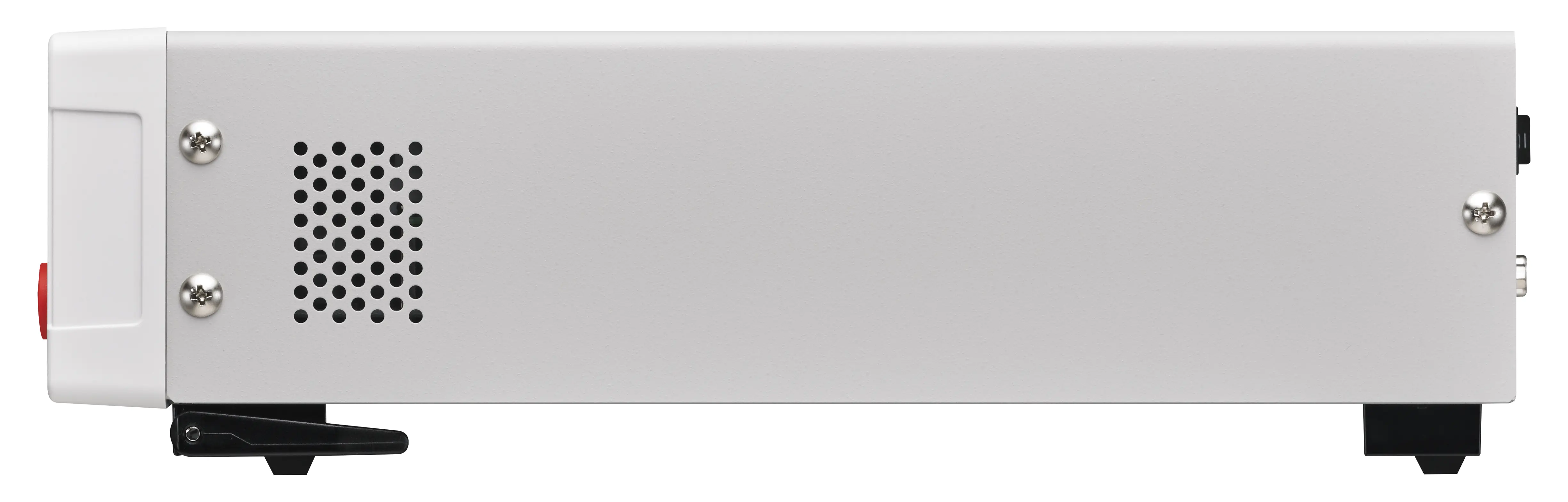

BT5525 - Battery Insulation Tester
Product number:
BT5525
EAN:
4536036014477
Length:
215 mm
Width:
306.5 mm
Height:
80 mm
Weight:
2.8 kg
Product information BT5525 - Battery Insulation Tester
Technical specifications
- Test voltage: 25 V to 500 V
- Charging current: 50 mA maximum
- Insulation resistance measurement: up to 9999 MΩ
- Contact check function
- Break Down Detect (BDD) function

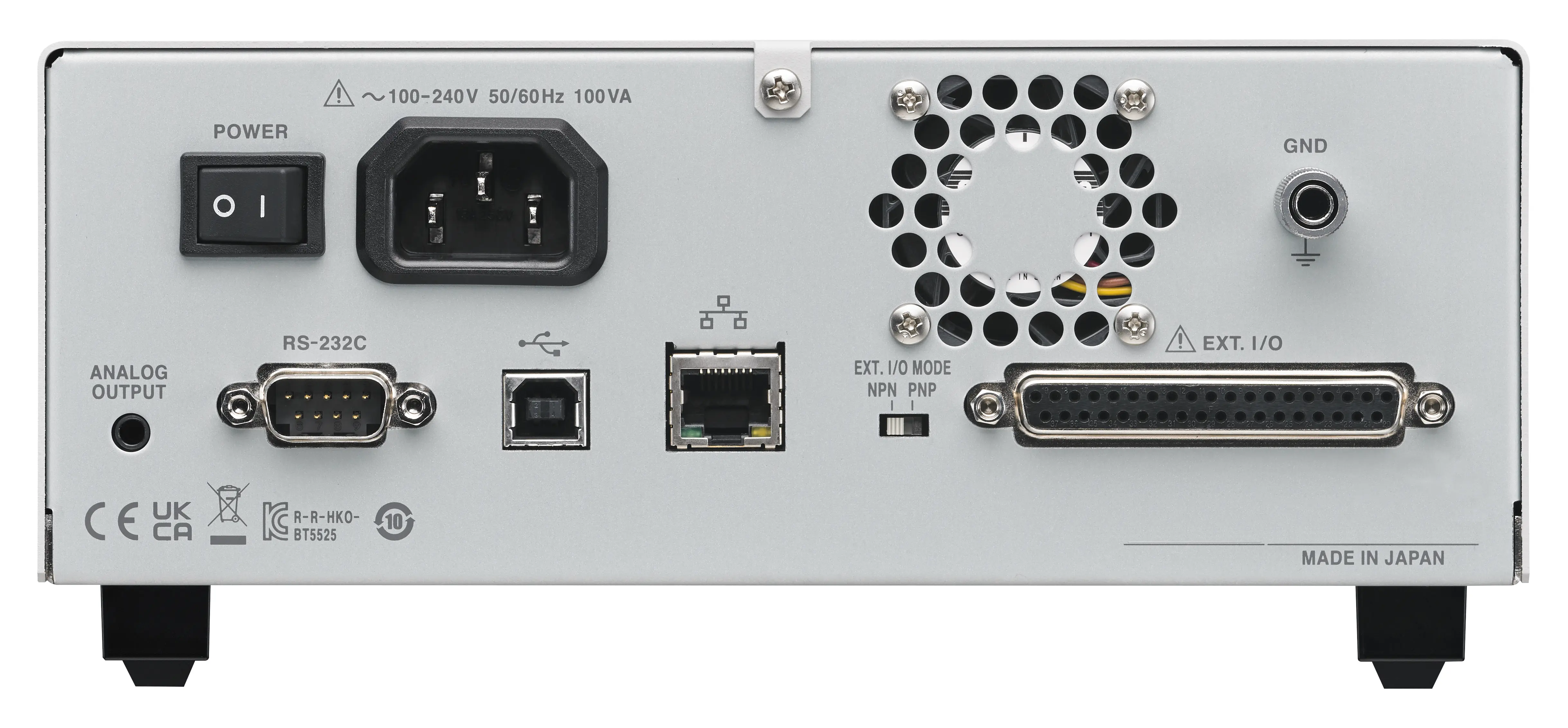

- Interfaces: USB, LAN, RS-232C, EXT. I/O
- Use in combination with Test Leads L2130 and L2131 for benchtop testing, use in combination with L2132 and L2133 for production line testing.
- Helps prevent shipment of batteries with latent insulation defects that could lead to fire
- Enables easy system integration and automation via multiple interfaces
- Offers a wide range of functions for convenient and reliable measurements
- BT5525 Battery Insulation Tester
- Power cord
- EXT. I/O male connector
- EXT. I/O connector cover
- EXT. I/O interlock cancellation jig
- Startup Guide
