Precision test fixtures for impedance and resistance meters

HIOKI test fixtures – reliable contact for accurate measurements

Select the suitable option depending on the shape and size of your device under test (DUT) – for example, for SMD components with dimensions from 1 mm to 10 mm, choose the 9263, or for leaded components with conductor diameters from 0.3 mm to 2 mm, select 9262. Fixtures with DC bias input are also available.

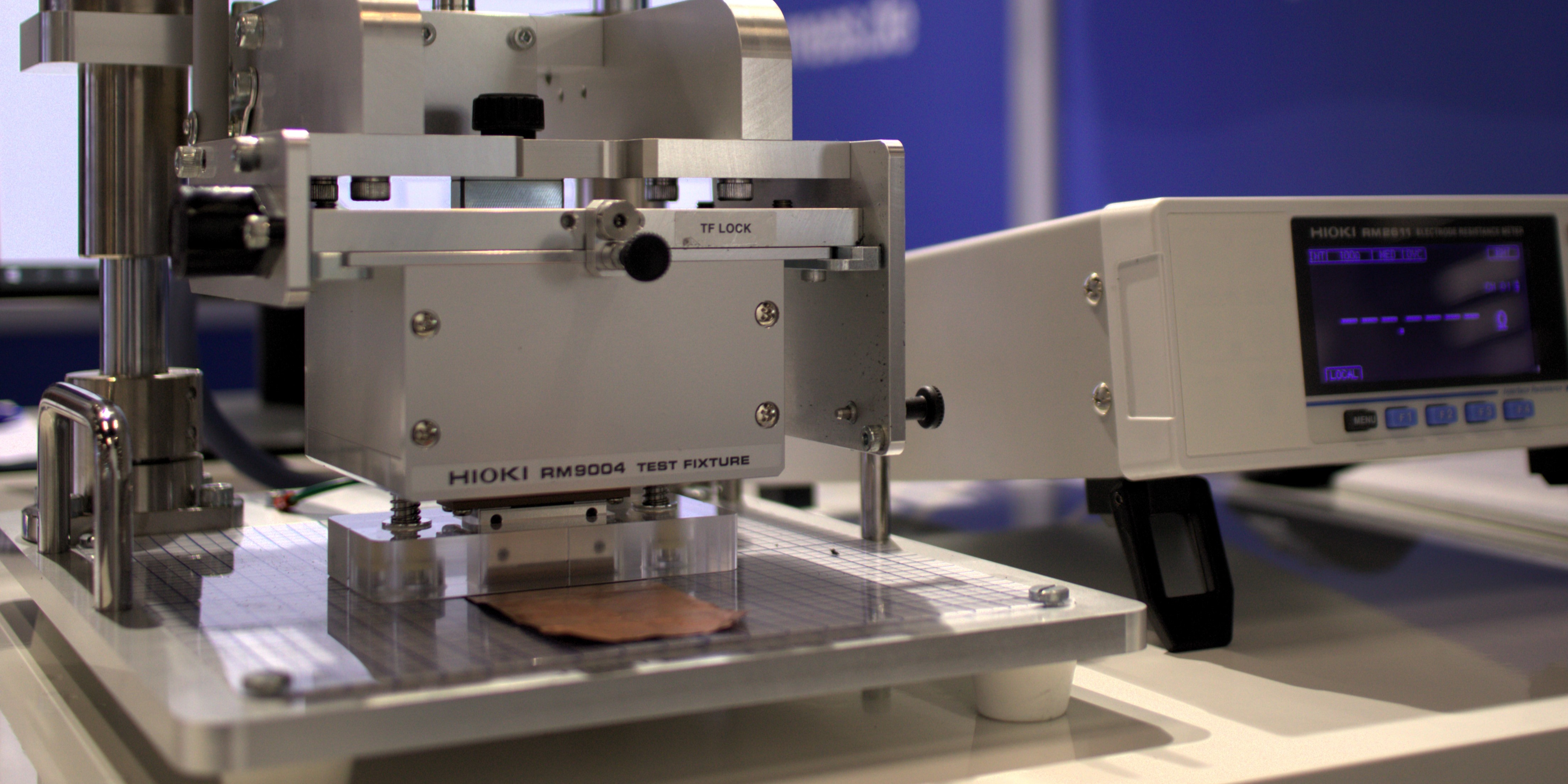

The RM9004 test fixture is part of the RM2610 Electrode Resistance Measurement System, a unique system designed for high-precision measurement of electrode resistance in battery research and QA.

Discover the right test fixtures for your resistance and impedance meter!

9261-10

9261-10 - TEST FIXTURE

The test fixture 9261-10 is designed for use with IM3590, IM3570, IM3533, IM3523, and similar products. It consists of a test box and a 1-meter 4-pole BNC cable, offering an impedance characteristic of 50 Ohms. The fixture supports measurements within a range from DC to 8 MHz. It accommodates test objects with conductor diameters from 0.3 mm to 1.5 mm, making it suitable for various precision testing tasks. Technical Details: Compatible with: IM3590, IM3570, IM3533, IM3523, and similar products Components: Test box, 1m 4-pole BNC cable Impedance: 50 Ohms Measurement range: DC to 8 MHz Test object conductor diameter: 0.3 mm to 1.5 mm

€798.00*

9262

9262 - TEST FIXTURE

The 9262 is a direct connection fixture designed to measure lead-type components with conductor diameters ranging from 0.3 to 2 mm and a minimum lead spacing of 5 mm. It operates within a frequency range of DC to 8 MHz, making it suitable for various testing applications. The fixture is compatible with the IM3590, IM3533, IM3523, and related instruments, ensuring accurate and reliable measurements of lead-type components. Technical Details: • Fixture type: Direct connection • Conductor diameter: 0.3 to 2 mm • Minimum lead spacing: 5 mm • Test frequency range: DC to 8 MHz • Compatible with: IM3590, IM3533, IM3523, and related instruments

€518.00*

9263

9263 - TEST FIXTURE

The 9263 is a direct connection test fixture designed to measure SMD-type components with a Device Under Test (DUT) size ranging from 1 mm to 10 mm. It operates within a frequency range from DC to 8 MHz, allowing for precise testing of components. The 9263 is compatible with the IM3590, IM3533, IM3523, and related instruments, making it a versatile tool for SMD component measurements. Technical Details: Fixture type: Direct connection DUT size: 1 mm to 10 mm Test frequency range: DC to 8 MHz Compatible with: IM3590, IM3533, IM3523, and related instruments

€908.00*

9268-10

9268-10 - DC BIAS VOLTAGE UNIT

The 9268-10 is a DC-Bias voltage application unit that can apply up to 40 VDC, requiring an external power supply. It is easily attached between the impedance meter and the test fixture, providing a seamless setup for testing. With a bandwidth of 40 Hz to 8 MHz, the 9268-10 supports a wide range of measurement applications, accommodating both low and high-frequency testing needs. Technical Details: DC-Bias voltage: Up to 40 VDC (external power supply required) Bandwidth: 40 Hz to 8 MHz Connection: Easily attaches between impedance meter and test fixture Measurement applications: Supports low to high-frequency testing

€628.00*

RM9004

RM9004 - TEST FIXTURE

The RM9004 Test Fixture is designed exclusively for use with the Electrode Resistance Measurement System RM2610. It should be affixed to the RM9003 Press Unit prior to use. Technical details:Replacement part

€9,048.00*
